Introduction

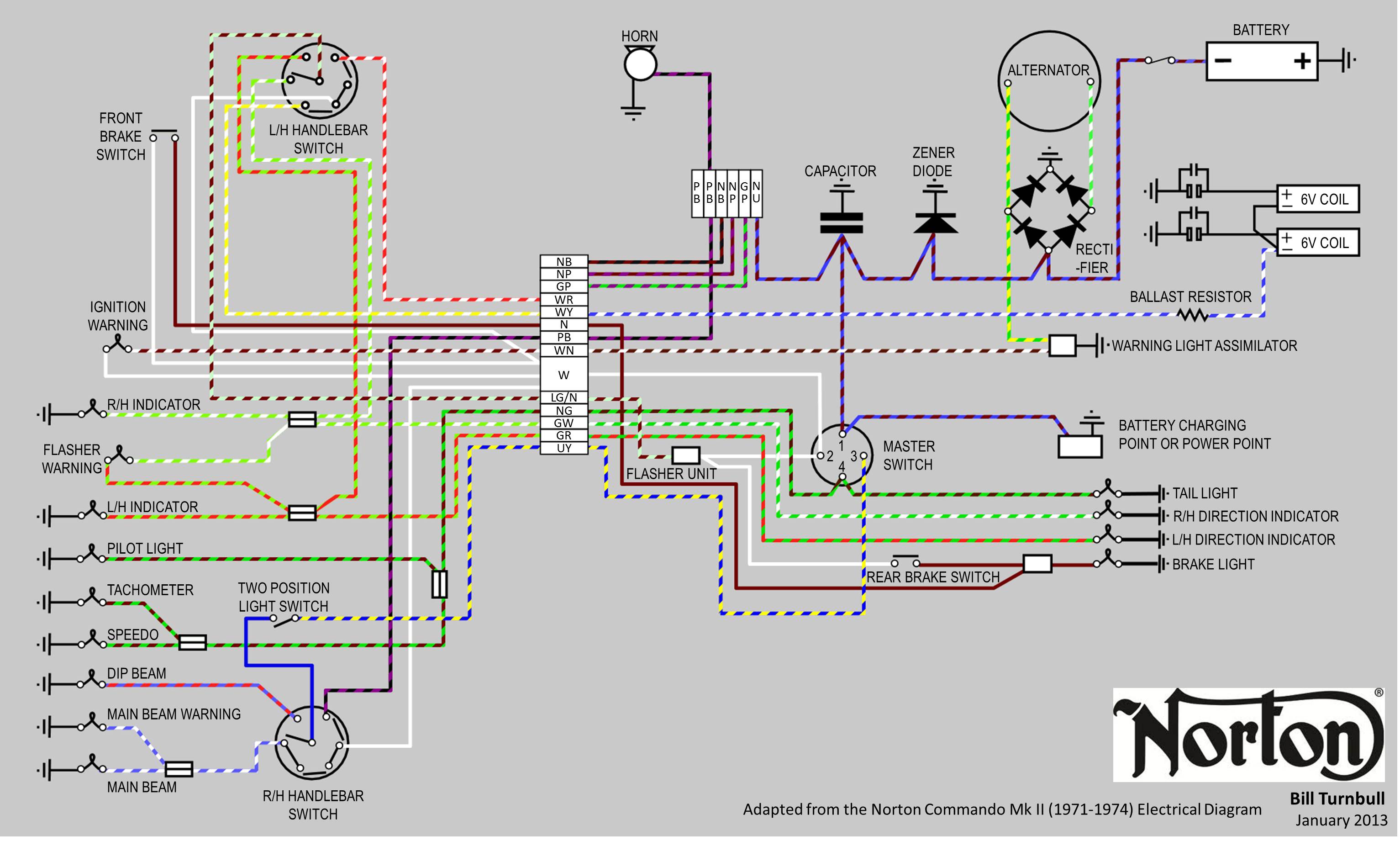

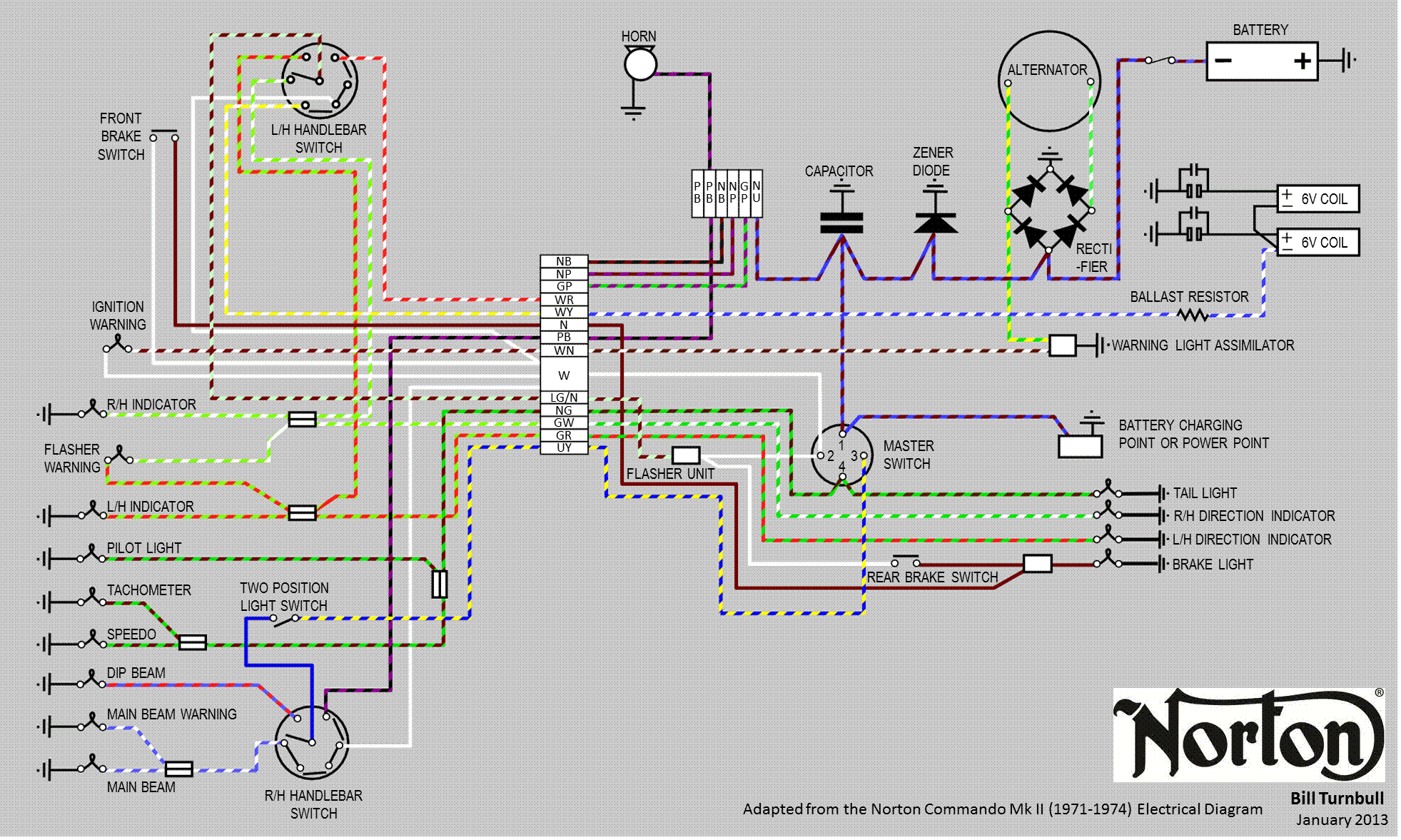

Here is a full color wiring or electrical diagram for the 1974 Mk II Norton Commando. It is based on the black and white diagram in the official workshop manual, and was created by me using Canvas.
GIF format, full size (1958 x 1172 pixels)
JPG format, full size (3066 x 1841 pixels)
PNG format, full size (3066 x 1841 pixels)

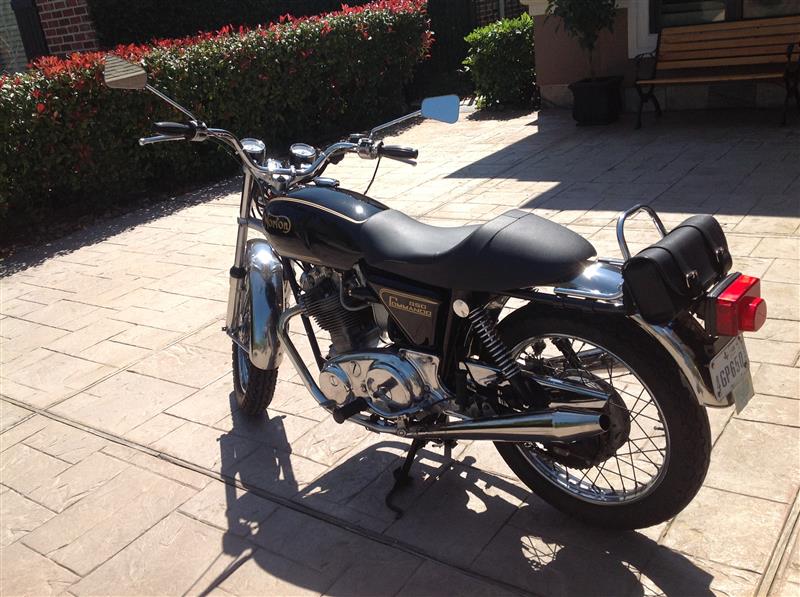

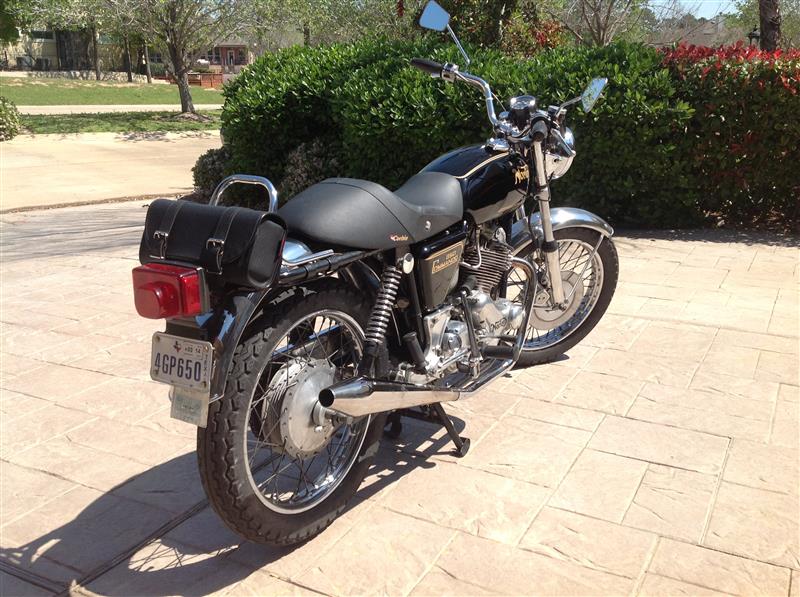

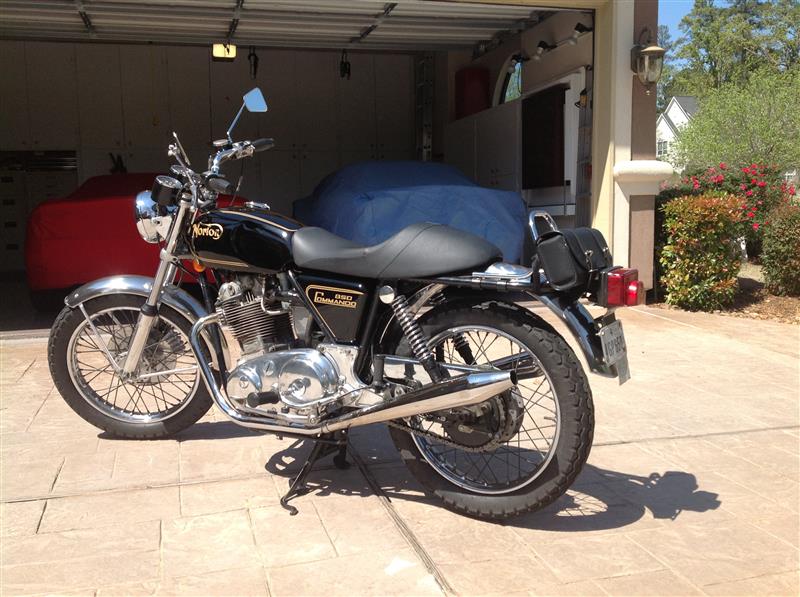

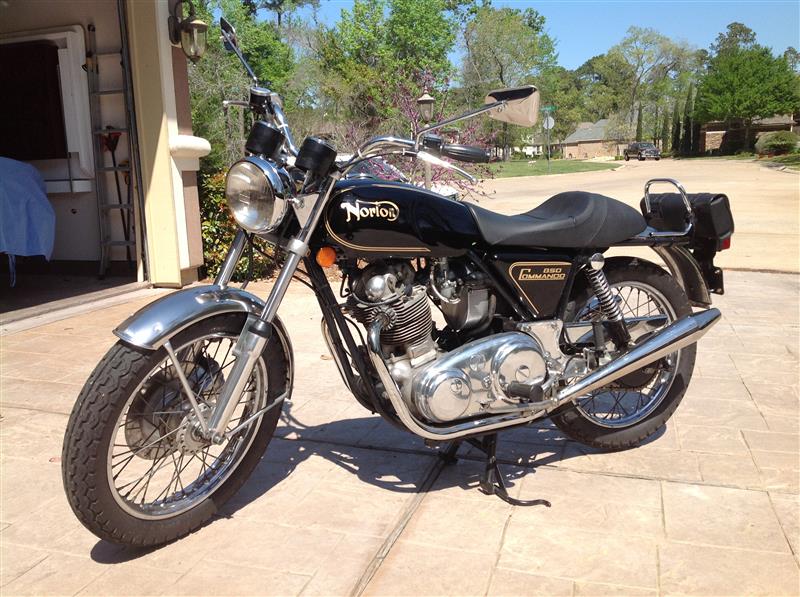

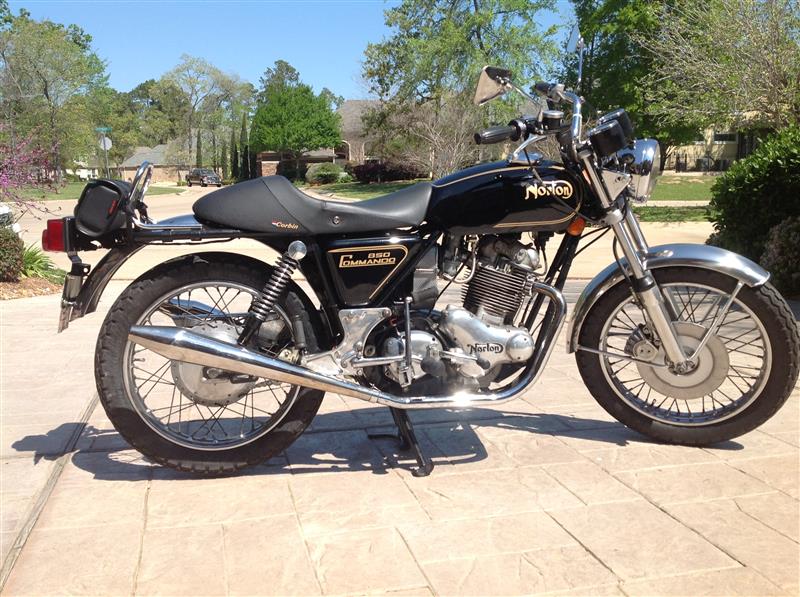

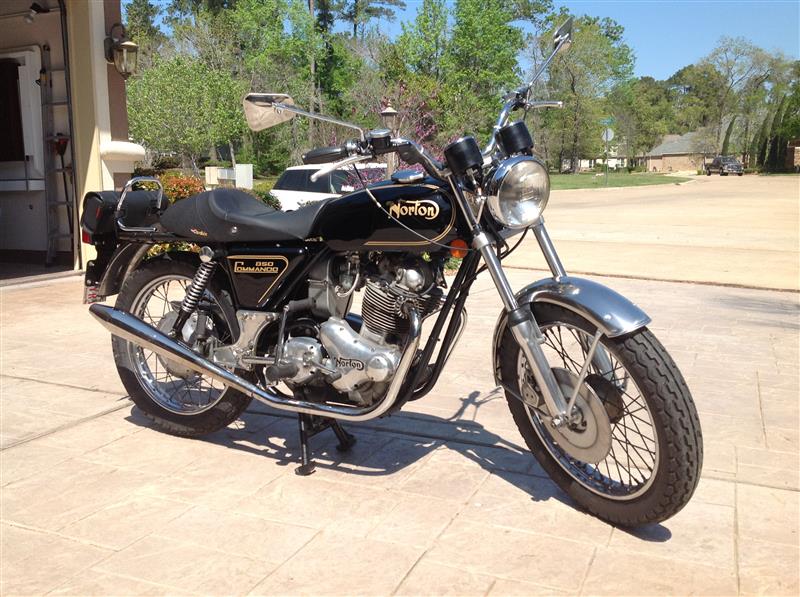

And for anyone who may be interested, here is my '74 Roadster. (Click for big)
 |
 |
 |
 |
 |
 |
Thank you for looking!
Bill Turnbull
Texas, 2013
